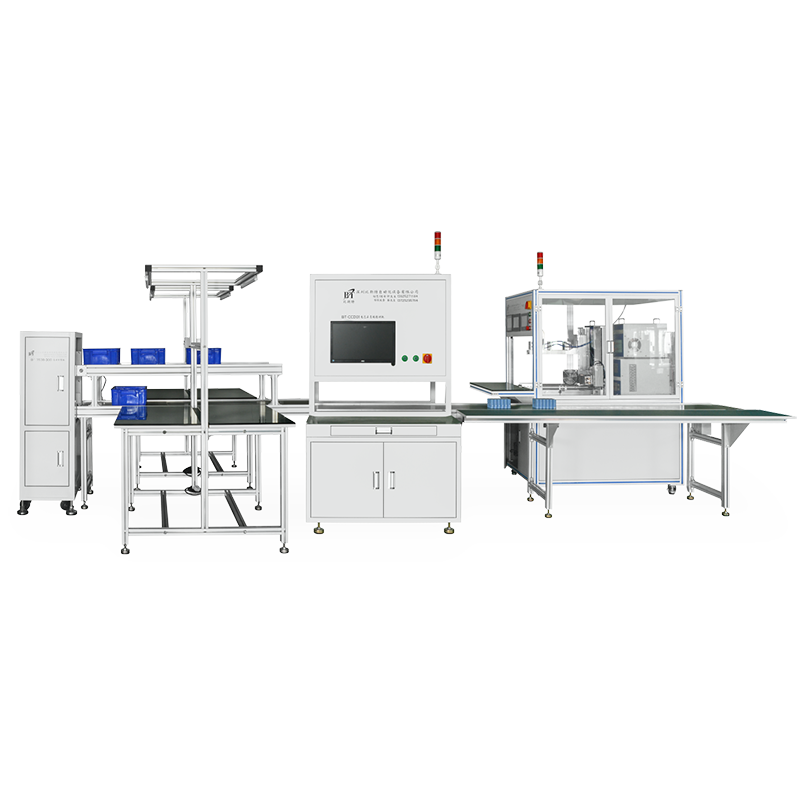

18650/21700 automatic production line
2025-11-20 16:51:10
Product features：
Main function：
Compatible with 18650/21700 batteries
Used for power/energy storage battery packs semi-automated production According to the set number of battery cells, the machine will automatically take thebattery cells of the same gear and automatically put them into the plastic box to avoidchaotic gears.
Ayenb ajqes pue /ouelsisuoo pnpod poo6 4 Customizable battery cell scan code function,database storage, bar code traceabilitydata generation
一、Main function
Compatible with 18650/21700 batteries
Used for power/energy storage battery packs semi-automated production According to the set number of battery cells, the machine will automatically take thebattery cells of the same gear and automatically put them into the plastic box to avoidchaotic gears. Ayenb ajqes pue /ouelsisuoo pnpod poo6 4
Customizable battery cell scan code function,database storage, bar code traceabilitydata generation
二、BT-CCD01Positive and negative electrode detector for battery cell parameters
Device function | For the cylindnical cell,the positive and negative electrode data are collected by camera,and the positive and negative electrode number and position infomation are compared with the sample,the result (NG or OK)is quickly analyzed,and the position of NG is marked,in order to confirm the positive and negative electrodes of the battery before entering spot welding,and prevent the bad caused by the wrong position of the positive and negative electrodes. | Power | AC220V 0.6KW 50/60HZ | ||||
Adaptive cellrange | cylindnical cel14430/14500/18650/21700 | ||||||
Adaptive detection range | 400*300mm,Custom-made for larger sizes | ||||||
Detection speed | 100PCS电芯/1.5S 100PCS/1.5s | ||||||
Testing accuracy | he core is not defomed orrusty,100% | ||||||
Extemal dimensions of equipment | L1050*W1025*H1600MM | ||||||
Weight | 120KG |
Power | AC220V 50/60HZ 4KW | Maximum stroke | Xaxis:200-600mm Yaxis:200-400mm | ||||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is afilter device to ensure that the flow of water-free impurities. | ||||||
Suitable for nickel sheet thickness | 0.1MM-0.2MM (0.15-0.2MM厚度镍片需开槽) (0.15-0.2MM thickness nickel sheet needs to be slotted) | ||||||
Standard spot wekcing power | MDA-8000B Transistor spot wekding power supply,quantity 2 | ||||||
| 凸点焊镍片0.21-0.4MM Bumpwelding nickel sheet 0.21-0.4MM | |||||||
Weling output curent | Max 10000A | ||||||
Suitable for spot welding pins | Imported diameter 1.7*100MM (spot welding) | ||||||
Spot welding data | CAD data import/dot matrix data mport/manual input | ||||||
Imported diameter 4-4*6 flat-head welding needle (for bump welding) | |||||||
| Run power | Servo electric | ||||||
Adantive ranos | 14430/14500/18500/18650/21700 26650/26700/32050/32700 | Equipment dimensions | L1630*W850^H1630MM | ||||
Droducfivity | About 4000PCS-5000PCS cels/hour | Weight | 200KG |
